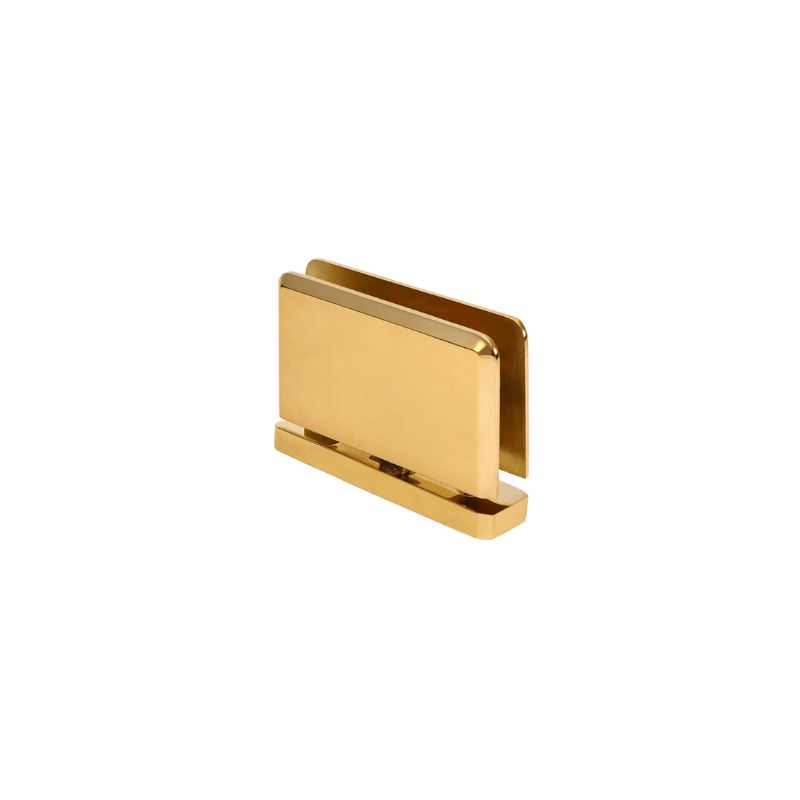

CRL Senior Prima Top or Bottom Mount Hinge -SRPPH01

$103.72$182.46

In stock
Buy it now
Brands:
SKU: SRPPH01

CRL Senior Prima Top or Bottom Mount Hinge -SRPPH01  is part of the Senior Prima series, known for its durability and versatility in shower door installations. Its top or bottom mount design offers installation flexibility while providing a clean, open appearance for the shower enclosure.

This self-centering pivot hinge boasts four robust springs, delivering maximum retention strength for your shower door. The innovative design ensures smooth, reliable operation, making every shower experience a delight.

CRL Senior Prima Top or Bottom Mount Hinge -SRPPH01 Key Features

  • Glass Thickness: 1/2″ (12 mm) Tempered Safety Glass
  • Versatile mounting:can be installed as either a top or bottom mount hinge, providing flexibility in installation
  • Self-centering mechanism: Four springs provide maximum retention strength.
  • Adaptable design: It’s adaptable to CRL’s Deluxe Header System, though it requires the SRHAB01 Senior Adaptor Block (sold separately)
  • High weight capacity: Supports doors up to 145 lbs with a maximum door width of 36″
  • Hinge Swings: Full Rotation
  • Closing Type: Self-Centering when within 15° of closed position.
  • 3 Year Warranty
  • Cut-Out Required
  • Includes: Gaskets, Screws, and Glass Fabrication Dimensions
  • Senior Prima Hinges – Patent No. 5,297,313

Top and bottom mount designs allow more glass to be visible compared to side-mounted hinges, creating a cleaner and more open appearance for the shower enclosure

Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.

Custom finishes are available upon request. CRL Shower Door Hinges are intended for residential or hotel shower use. Approval from the CRL Technical Sales Department is required for other applications.

Edge Profile Beveled
Glazing Thickness 1/2 in
Height 2-5/8 in
Material Brass
Maximum Door Weight 145 lbs
Maximum Door Width 36 in
Mounting Type Head & Sill Mount
Self-Centering Yes
Series Senior Prima
Width 4-3/4 in
