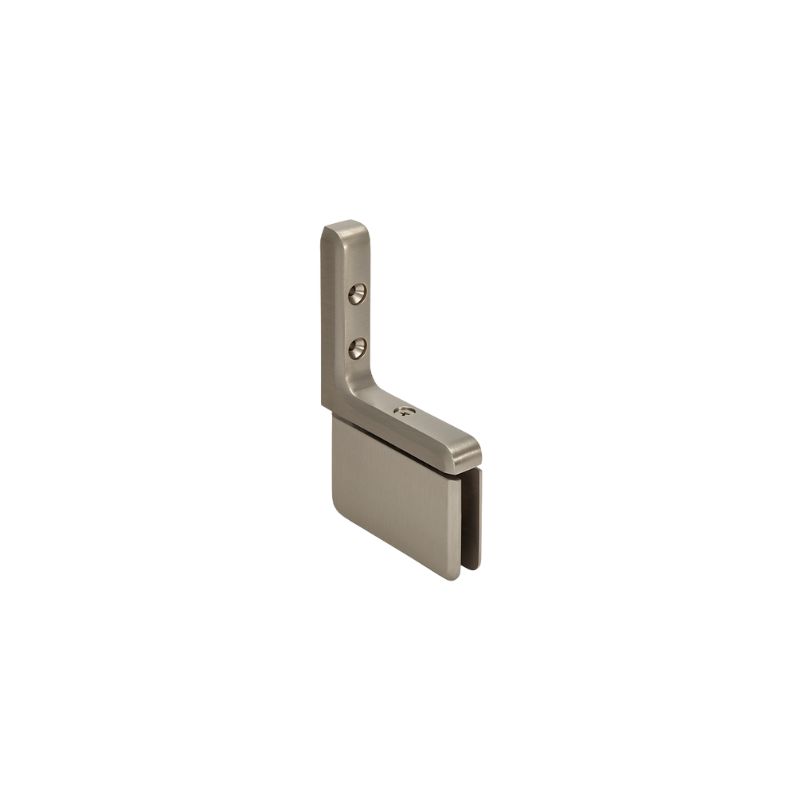

CRL Prima Wall Mount Hinge PPH03

$91.04$130.95

In stock
Buy it now
Brands:
SKU: PPH03

CRL Prima Wall Mount Hinge PPH03 is a top choice for creating sleek, modern frameless shower doors. Designed for 5/16″ to 3/8″ (8 to 10 mm) tempered safety glass, this versatile hinge is crafted to provide both functionality and aesthetics, perfect for enhancing any bathroom with a seamless glass installation.

  • Premium L-Bracket Wall Mount Design: The L-bracket wall mount of the PPH03 provides a secure and stylish installation, reducing the need for traditional header systems while offering added stability and a minimalist look.
  • Self-Centering with Optional 5º Pivot Pin Set: Equipped with a self-centering mechanism that utilizes four internal springs, this hinge ensures smooth door closure within 15º of the closed position. For more customization, the optional 5º Pivot Pin Set allows you to adjust the door’s resting angle by 5º, offering flexibility in alignment and installation.
  • Range of Beautiful Finishes: The PPH03 is available in several high-quality finishes to perfectly match any decor. For custom finishes, please contact the CRL Technical Sales Department.
  • Robust and Reliable: Built from solid brass and backed by a 3-year warranty, this hinge is designed to withstand daily use while keeping your frameless shower secure and stylish.
  • U.S. Patent 5,297,313: Ensuring top-tier craftsmanship and patented technology, the PPH03 hinge is a trusted choice for professional-grade installations.

Key Features:

  • Weight Capacity: Supports up to 100 lbs. (45 kg) of glass with a maximum door width of 31″ (787 mm) when using two hinges.
  • Adaptability: The PPH03 model is adaptable to the Deluxe Header System for enclosures that do not extend to the ceiling, adding further flexibility to its applications.
  • Enhanced Aesthetic: Top and bottom mount designs like the PPH03 reduce the need for glass cut-outs compared to traditional side mount hinges, maximizing glass visibility for a clean, uninterrupted appearance.

Specifications:

  • Glass Thickness: Designed for 5/16″ (8 mm) to 3/8″ (10 mm) tempered safety glass.
  • Full Rotation Swing: Offers a full range of motion, enhancing door flexibility.
  • Self-Centering Closing: Hinges self-center within 15º for reliable closure.
  • Cut-Out Requirement: Some models may require additional cut-outs for specific applications; please review installation guidelines.
  • Installation Kit: Comes complete with gaskets, screws, and glass fabrication dimensions for easy installation.

For a frameless shower enclosure that embodies elegance and durability, the CRL Prima Wall Mount Hinge PPH03 is the ideal solution.

5 Degree Pre-Set Yes
Edge Profile Beveled
Design Style Beveled
Enclouser Type Corner, Niche, Tailor Made Solutions
Glazing Thickness 5/16 in to 3/8 in
Handing Field Reversible
Material Brass
Height 2 in
Maximum Door Weight 100 lbs
Maximum Door Width 31 in
Mounting Type Wall Mount
Series Prima
Self-Centering Yes
Opening Style Pivot (flor)
Width 3-5/8 in
