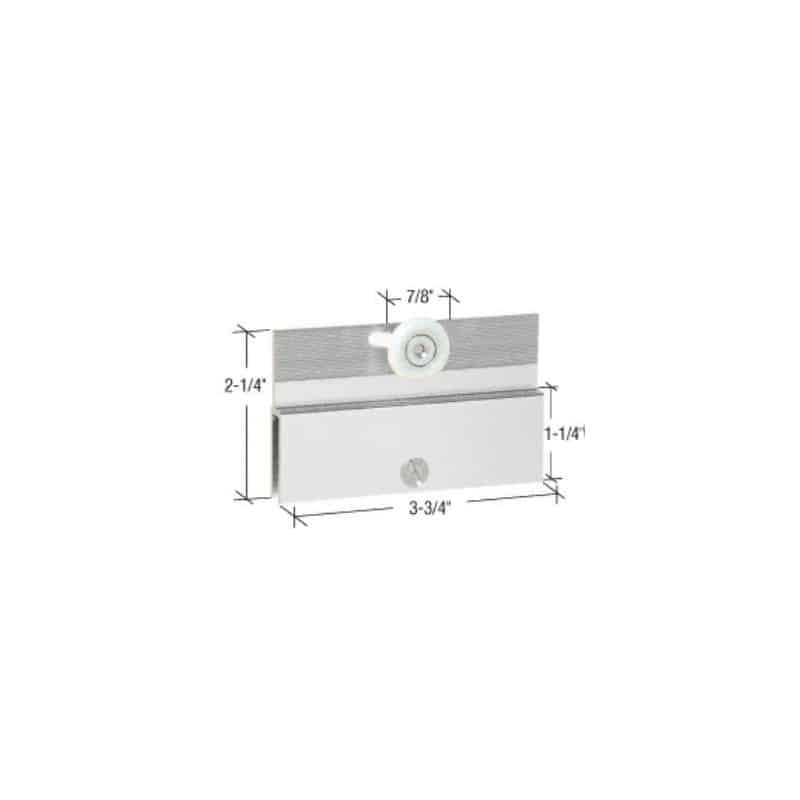

CRL 1/4″ Top Hanger Bracket for CK/DK Cottage Series Sliders-DK67

Upgrade or customize your Cottage Series frameless sliding shower door setup with this CRL 1/4in Top Hanger Bracket for CK/DK Cottage Series Sliders-DK67.  Available in a variety of elegant finishes to match your existing hardware kits, this assembly gives you the flexibility to expand or build a new designer enclosure from scratch.

Finish Options:

• Brite Anodized,
• Brite Gold Anodized,
• Brushed Nickel,
• Oil Rubbed Bronze

Glass Compatibility: Designed for monolithic tempered glass
Installation: Ideal for DIY installations or custom solutions – just send us a drawing

Why Choose This Assembly?

• Seamlessly integrates with CK/DK Cottage Series sliding kits
• Allows you to add fixed or sliding panels to create custom layouts
• Compatible with our stock headers, sills, jambs, and top hangers
• Custom design support available – just send us your shower opening dimensions via email or fax

Installation Made Easy
Whether you’re a DIYer or working with a contractor, each custom kit includes detailed installation instructions. Just provide your enclosure dimensions, and we’ll tailor a kit for your project (glass and silicone not included).

Note: Fixed glass panels must be 3/8″ (10 mm) thick.

Technical Specifications:

Material:

• Extrusions: Aluminum
• Towel Bar: Brass Tubing
• Knob: Solid Brass

Glass Thickness Compatibility:

• 1/4″ (6 mm) or 3/8″ (10 mm)

Recommended Max Slider Dimensions:

• For 1/4″ Glass: 60″ W x 72″ H or 72″ W x 60″ H
• For 3/8″ Glass: 72″ W x 80″ H

Glass Fabrication Requirements:

• Towel Bar: Two 1/2″ (12 mm) diameter holes, 24″ (610 mm) center-to-center
• Knob: One 1/2″ (12 mm) diameter hole
• Top Hangers: Four 1/2″ (12 mm) diameter holes (two per panel)
